OVERVIEW
Description

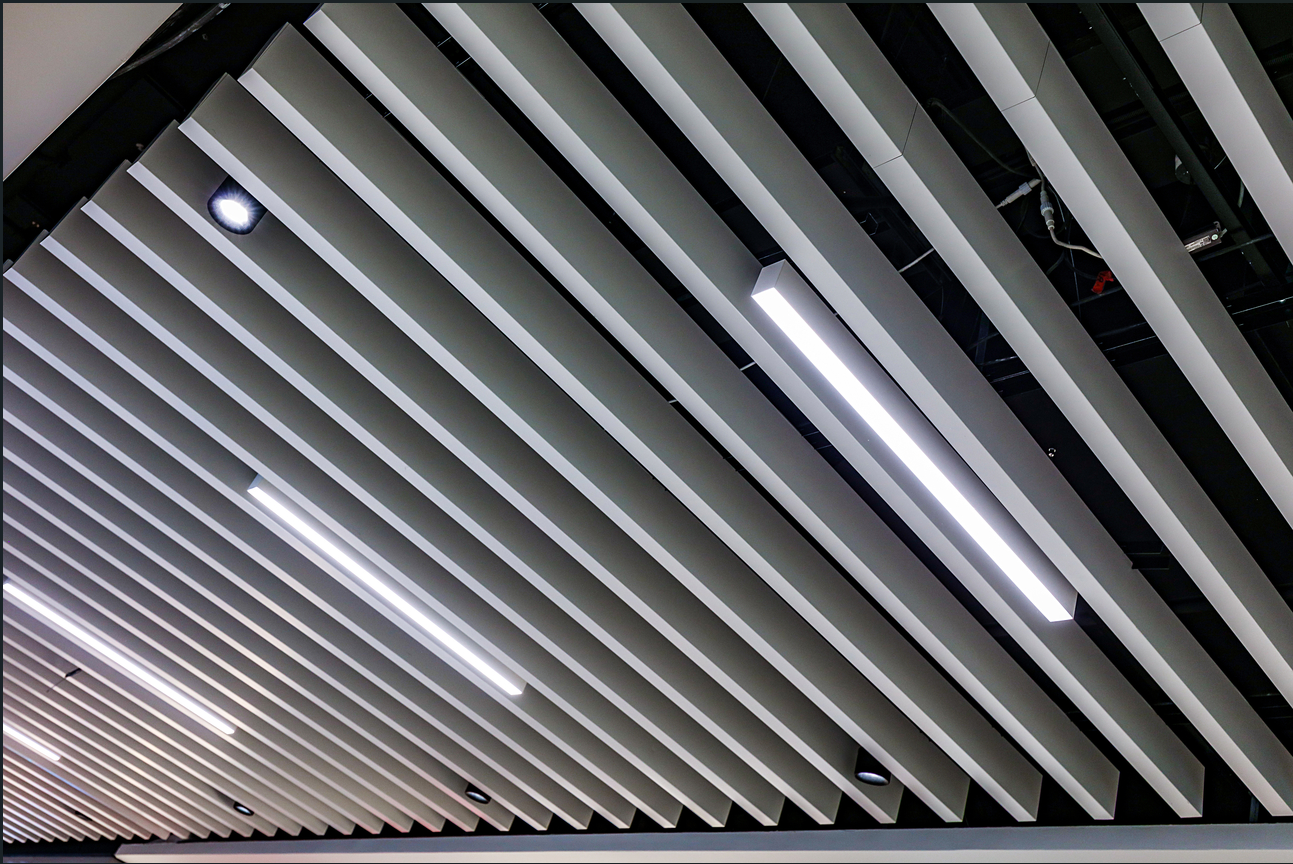

Metacil® 84R Sunblind Louvers are precision-engineered architectural panels designed to deliver both aesthetic elegance and functional performance. Featuring 84 mm wide roll-formed aluminium panels with smooth, rounded edges, this system offers a clean, linear appearance that enhances modern architectural designs. The panels are seamlessly clipped onto a concealed carrier system, allowing for quick installation and the creation of horizontal or vertical layouts. The design supports both open and visually closed joints, offering flexibility in ventilation, acoustics, and visual continuity. Finished with high-performance coatings, the 84R system ensures long-term durability and resistance to weathering.
Characteristics
Custom Lengths: Panels available in lengths ranging from 800 mm to 6000 mm, with the option to join using panel splices for extended spans
Design Flexibility: Multiple standard carrier options allow for varied visual effects and functional requirements
Ventilation & Acoustics: Open joint configurations available for enhanced airflow and sound absorption where required
Curved Applications: Specially designed curved panels accommodate concave and convex surfaces for complex façade geometries
Superior Finishes: Offered in a wide selection of Luxacote® finishes, ensuring resistance to corrosion, UV rays, and harsh environments
Lightweight & Durable: Manufactured from high-quality aluminium for strength, corrosion resistance, and ease of handling
Application
Corporate and Commercial Buildings
Public Infrastructure: Airports, transit hubs, and civic buildings.
Retail and Hospitality: Malls, hotels, restaurants, and showrooms.
Educational and Cultural Institutions: Schools, universities, museums, and galleries.
Main Component

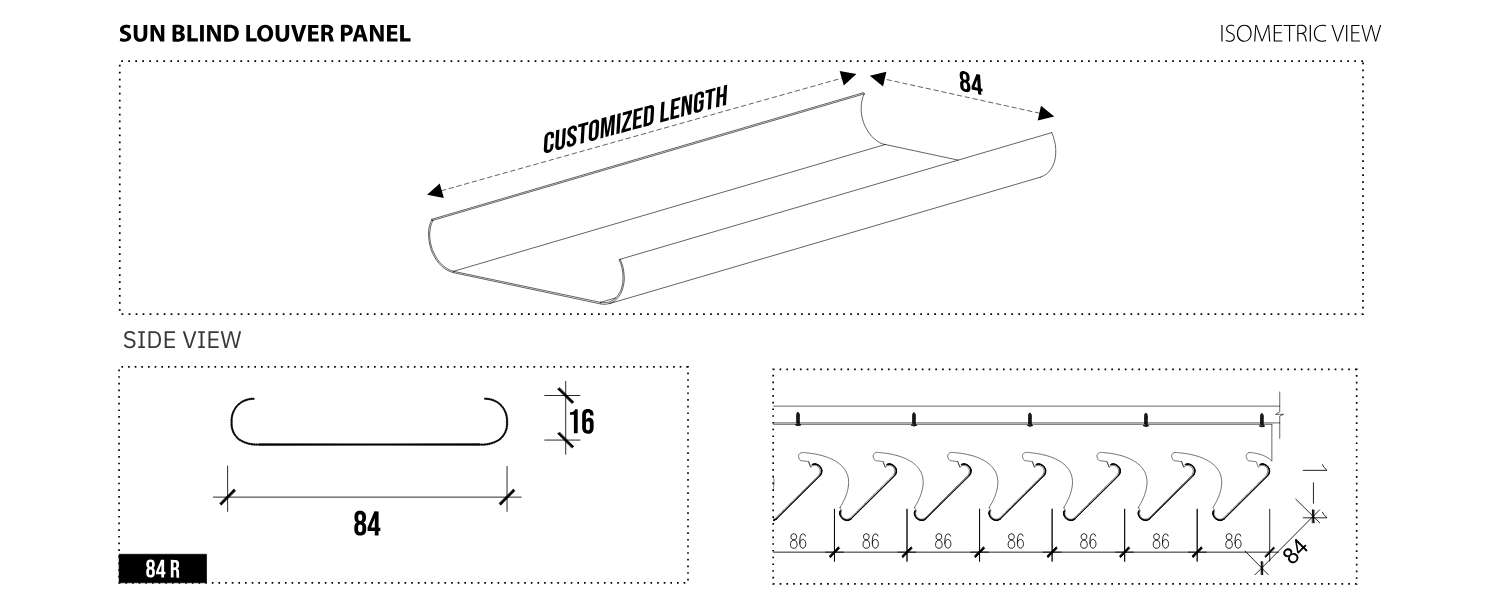

84R SUN LOUVER

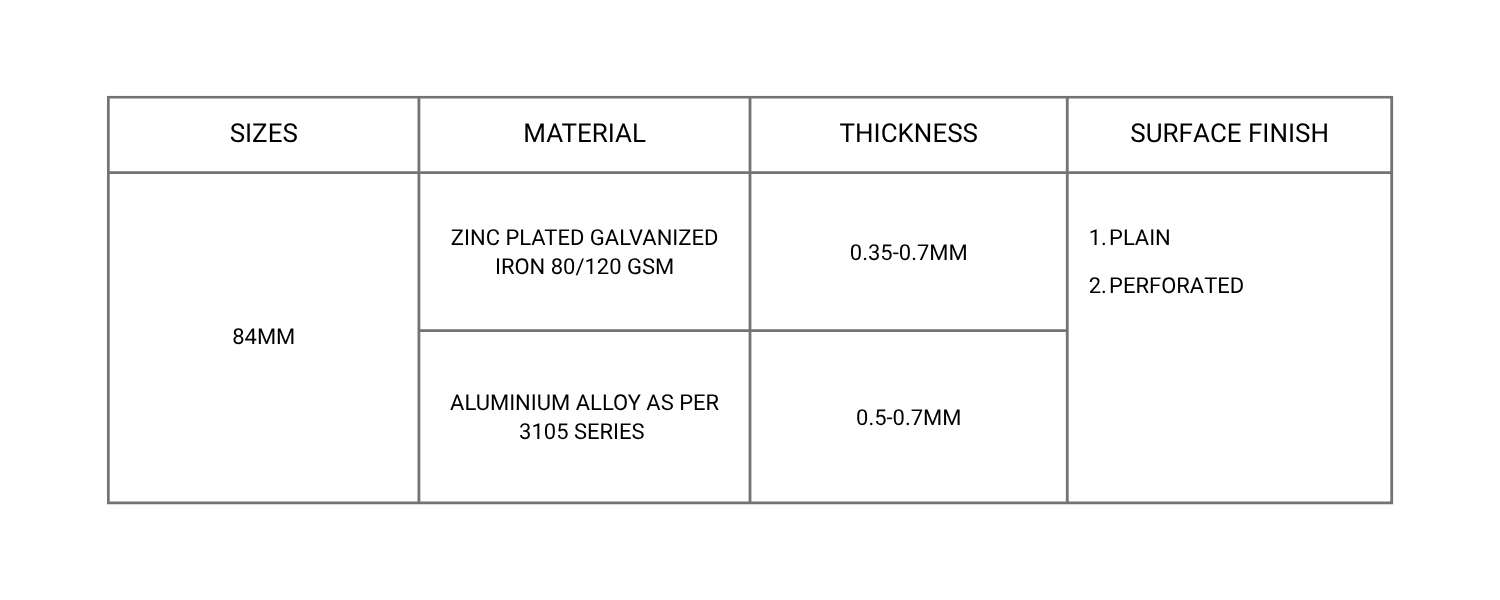

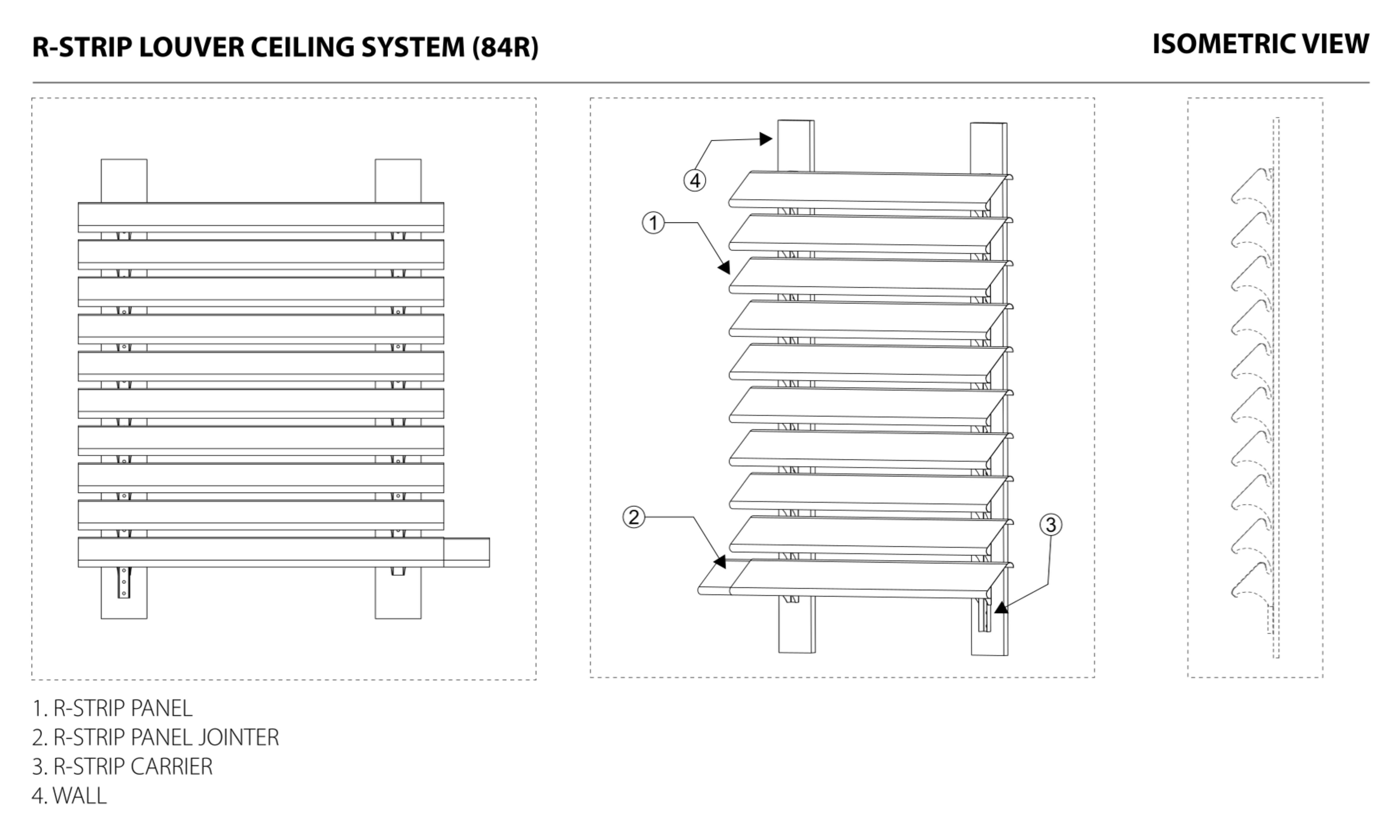

Structure Options

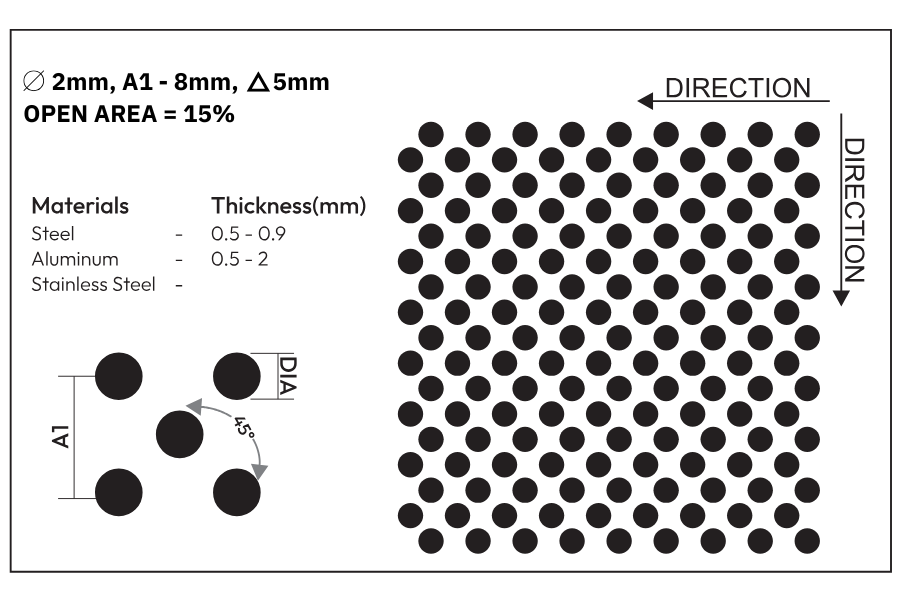

PERFORATION OPTIONS
COLOUR OPTIONS
MATT WHITE
MATT LED WHITE
MATT BLACK
MATT DARK GREY
MATT WHITE
MATT LED WHITE
MATT BLACK
MATT DARK GREY

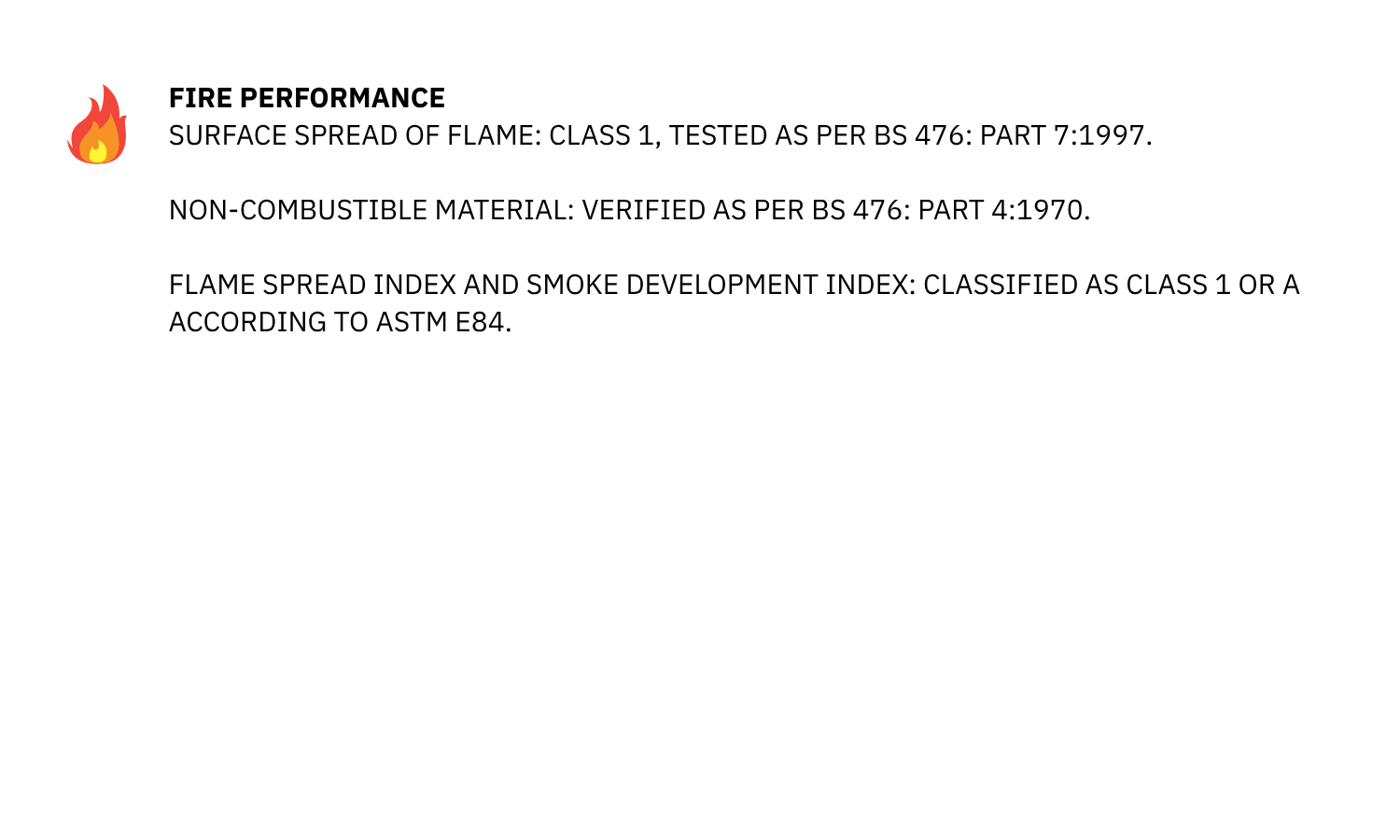

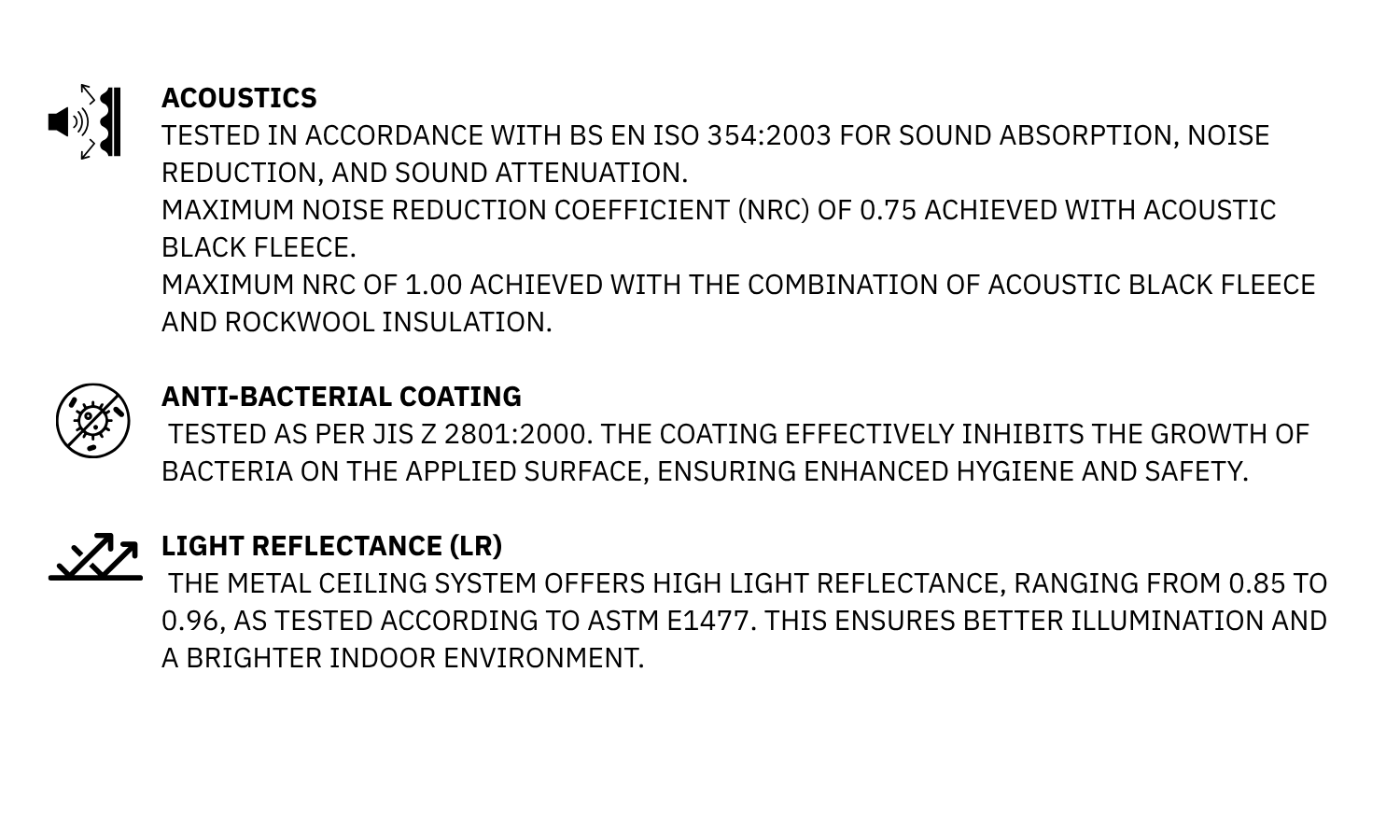

PERFORMANCE
